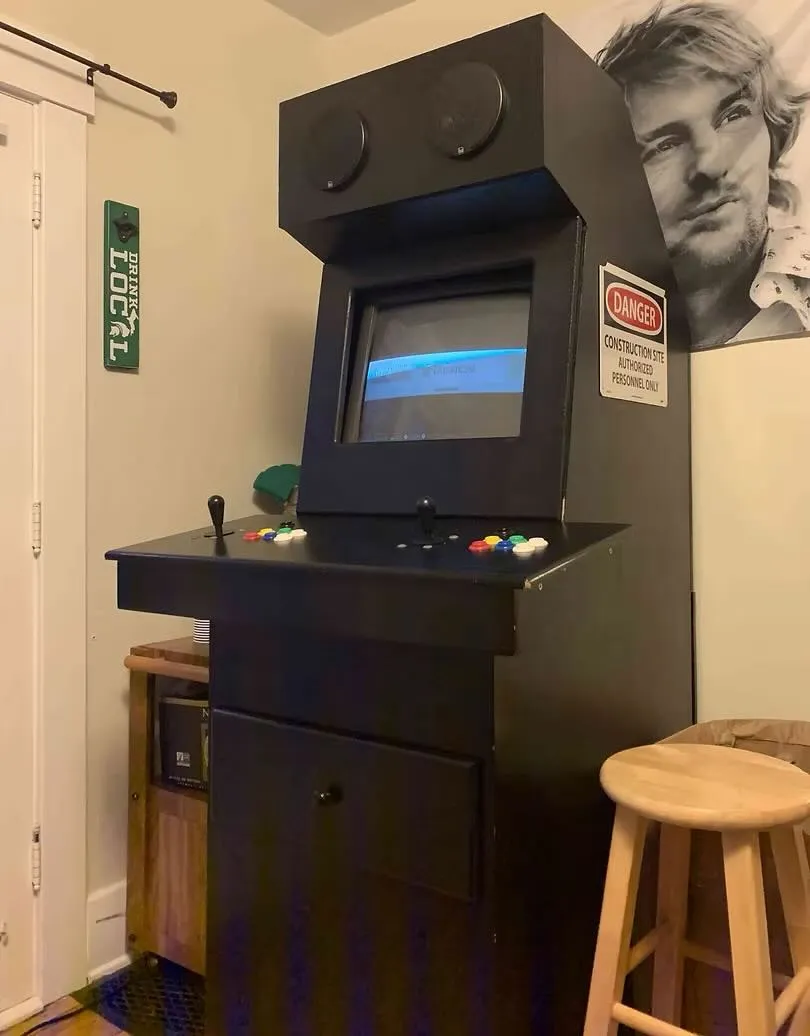

The D-Cade
A Raspberry Pi Arcade · 2020
A busted Sega Dreamcast. A $35 computer. 200+ hours of soldering, printing, and coding. One very loud a cappella house.
At a glance
- What
- A dead Dreamcast cabinet reborn as a Raspberry Pi arcade
- My role
- Solo builder — wiring, 3D printing, software
- Outcome
- Two years in the D-House; now serving a doctor's waiting room
- Stack
- Raspberry Pi · RetroPie · 3D printing · A/V
0+
Retro Games
0
Raspberry Pi
0+
Build Hours
The Origin Story
My dad brought home an arcade cabinet when I was a kid. I broke it. Then I fixed it.
When I was little, my dad came home with this custom arcade cabinet he found on Craigslist. It had a Sega Dreamcast inside loaded with games my siblings and I couldn't get enough of — Power Stone, Double Dragon, Sega Bass Fishing, House of the Dead, Joust, and a bunch more. That thing was the center of our basement for years.
After enough abuse at the hands of myself, my siblings, and a rotating cast of little cousins, the Dreamcast inside finally died. The cabinet sat dormant in our basement for years after that. Just furniture.
Fast forward to senior year of college. Winter break. I was home staring at this dead cabinet and decided I was going to bring it back to life. The plan: rip out the broken Dreamcast and replace it with a Raspberry Pi running RetroPie. Modernize the whole thing. Build something I could bring back to our college house — the D-House, home to my a cappella group, the Dischords.
System Diagnostic
[FAIL] Sega Dreamcast ........ dead optical drive
[FAIL] Dreamcast BIOS ....... corrupted
[FAIL] A/V output ........... TV has coax only
[WARN] Speaker system ........ blown, needs replacing
[WARN] Controller panel ...... Dreamcast USB only
[ OK ] Cabinet shell ......... structurally sound
[ OK ] CRT television ........ functional (coax)
---
VERDICT: Dead tech. Great bones. Time to rebuild.
First step was tearing the whole thing apart and figuring out what still worked. The cabinet shell and CRT were fine — everything else needed replacing or adapting. This diagnostic became my project plan: what's dead, what's salvageable, and what I'd need to buy or build from scratch.
Interactive
D-Cade Tycoon: Junkyard Edition
Dig through piles of college house junk to find the five components you need, then click to place them into the cabinet and rebuild the D-Cade from scratch.
The Build
No guide. No manual. Just a plan and a soldering iron.
First I tore the whole thing apart to see what I was working with: an old box TV with only a coax port, a blown speaker system, a dead Sega Dreamcast, and a custom joystick panel made from old Dreamcast controllers.
Gutting & Retrofit
Swapped out the dead Dreamcast for a Raspberry Pi running RetroPie. Bought HDMI-to-A/V converters, routed through an RF modulator into the coax-only TV, and got Dreamcast-to-USB adapters so the original controllers would work.
Speaker Replacement
The original speakers were blown. Bought new retro arcade cabinet speakers, installed them, and wired everything through a management board connected to the Pi. The D-House needed volume.
3D Printing & Mounts
Off-the-shelf Pi cases didn't fit the vintage drawer dimensions. Designed and 3D-printed custom mounting brackets so the Pi slid into a drawer for easy access. Installed a new door for cable management.
Software & Customization

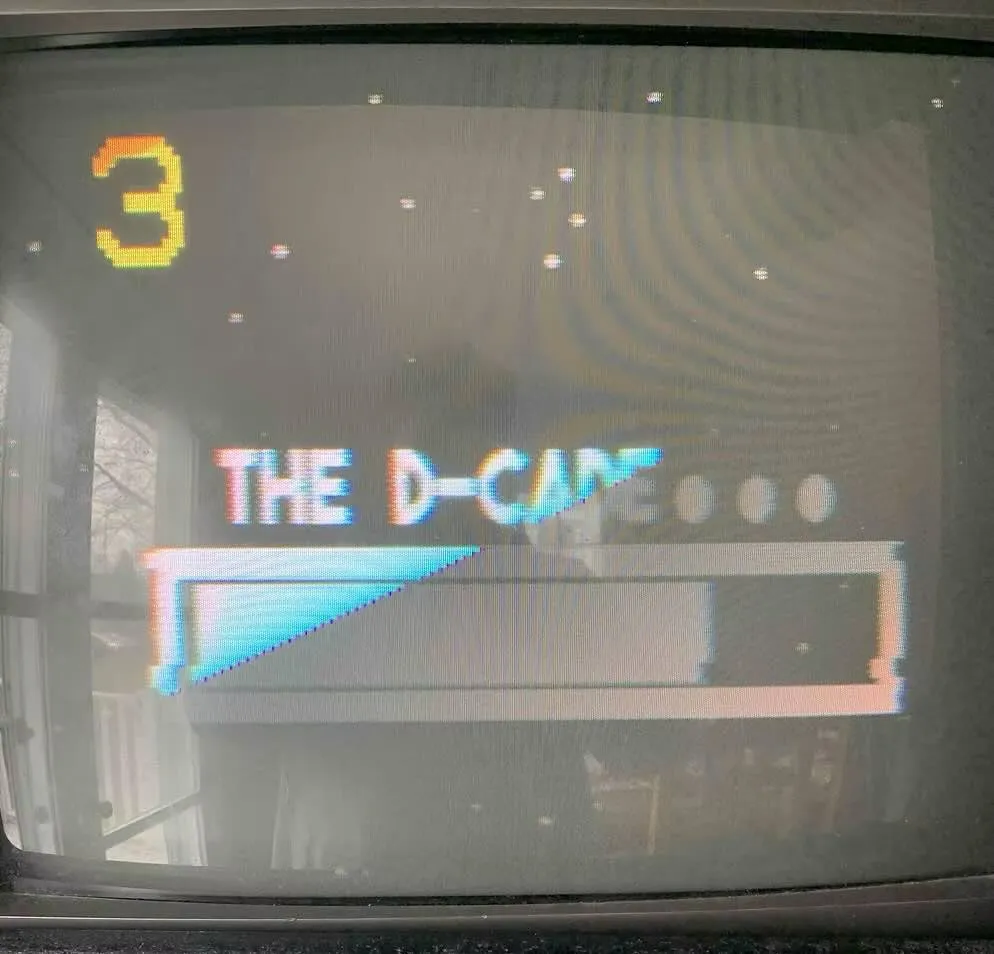

Loaded 35+ ROMs, built custom splash screens so it boots to D-Cade branding, set up SSH for remote management, and configured save states so people could pick up where they left off.
Engineering Details
The signal chain from hell (and other fun problems)
Coax-Only TV, Meet HDMI
The TV inside the cabinet had no A/V ports. Just coax. So I had to chain together an HDMI-to-A/V converter, then run that through an RF modulator to get the signal into the TV. It took a few tries to get the picture clean — lots of static, lots of swearing — but once it clicked, the CRT gave everything that warm, slightly curved retro look that an LCD just can't replicate.
3D-Printed Custom Mounts
The Dreamcast used to sit in this internal drawer, but the Pi is tiny by comparison. Nothing fit. I designed and 3D-printed custom mounting brackets so the Pi slid into the drawer neatly, with all the cables organized. Installed a new access door too, so I could swap SD cards or troubleshoot without tearing the whole cabinet apart.
UX Philosophy
The "D-House Party" Test
This thing was going to live in a college house. People would walk up to it at midnight, mid-party, and they needed to go from standing in front of a black box to playing a game in under ten seconds. No instructions. No help menus.
So everything was designed around that. Custom splash screens boot straight into the game browser — no Linux terminal in sight. I pre-tested every ROM to make sure it worked with the original joystick and button mapping. I set up SSH so I could manage the Pi from my laptop without ever opening the cabinet. Save states meant people could pick up where someone else left off. The magnetic latch on the access door kept curious hands away from the cables.
The real validation came at our first house party after install. People just walked up and started playing. Nobody asked how it worked. That was the whole point.
The Crew
It took a house.
The D-Cade was my project, but these guys put in serious hours testing every ROM, breaking things I thought were unbreakable, and making sure it held up at house parties.
Sam
Chief Architect
Alec "Milk"
Gameplay Tester
Logan
Gameplay Tester
Ethan
Gameplay Tester
Legacy
From the D-House to a doctor's office in South Lyon.
The D-Cade lived in the D-House for two years. It survived house parties, a cappella rehearsals, and the kind of aggressive love that only college students can give a piece of electronics. When we graduated, I didn't want it collecting dust in another basement.
It now sits in the waiting room of a popular doctor's office in South Lyon, Michigan. Fully operational. Still running the same 35+ games. Kids play it while they wait for appointments. I joke that it's my greatest contribution to public health.
Reflection
What I took away from the build
This was a winter break project. Nobody assigned it. There was no deadline, no grade, no client. I just couldn't look at that dead cabinet anymore. That kind of motivation — the "I have to fix this" kind — taught me more about project management than any class did.
Loading it into my mom's minivan, driving it an hour to East Lansing, and rebuilding it in the D-House over a weekend gave me a real sense of what it takes to ship something physical. A/V wiring, 3D printing, soldering, SSH configuration — none of these were in my major. I just learned them because the project needed them.
The moment it stopped being my project and became the house's arcade, every decision got sharper. The people playing it didn't care how the signal chain worked. They just wanted to press start.
Technical
- Raspberry Pi / Linux
- A/V Signal Routing
- 3D Printing & CAD
- Soldering & Wiring
- SSH & Networking
- RetroPie Configuration
Soft Skills
- Self-Directed Learning
- Project Scoping
- User-Centered Design
- Creative Problem Solving
- Resourcefulness
- Physical Prototyping
